Force Capacity

LD5

5 kN /1124 lbf

LD10

10 kN /2248 lbf

LD30

30 kN /6744 lbf

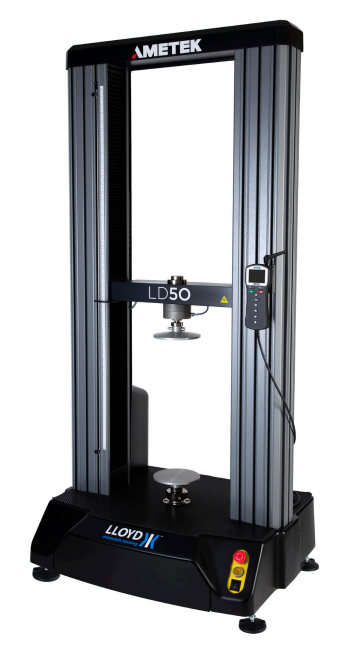

LD50

50kN /11240 lbf

LD100

100 kN /22480 lbf

Crosshead Speed Range

LD5

0.0001 to 1270 mm/min /
0.000004 to 50 in/min

LD10

0.0001 to 1270 mm/min /
0.000004 to 50 in/min

LD30

0.0001 to 1000 mm/min /
0.000004 to 40 in/min

LD50

0.0001 to 500 mm/min /
0.000004 to 20 in/min

LD100

0.0001 to 250 mm/min /
0.000004 to 10 in/min

Return Speed

LD5

1270 mm/min / 50 in/min

LD10

1270 mm/min / 50 in/min

LD30

1000 mm/min / 40 in/min

LD50

650 mm/min / 26 in/min

LD100

325 mm/min / 10 in/min

Speed Accuracy

0.1%

Crosshead Travel

Standard Height

1070 mm /42 in

Extended Height

1669 mm /65.7 in

The LD100 is available in only a standard height version.

Extension Resolution

LD5/10

0.000121 μm per encoder count

LD30

0.000214 μm per encoder count

LD50

0.000354 μm per encoder count

μm = micron.

Load Cell

Load Cell Accuracy

< +/- 0.5% of reading
down to 1/100 of load cell capacity

Resolution

32-bit A/D converter

Min. Load Resolution

1 part in 109

Extensometer Inputs

Analog and Digital

Data Transfer Rate to PC

1 kHz

Supply Voltage

207-253 VAC at 50 Hz or 103.5-126.5 VAC at 60 Hz

Load Measuring System

EN ISO 7500:2015 Class 0.5 ASTM E4

Software

NEXYGENPlus 4

Weight

225 kg /496 lb

Operating Temperature

10 to 40° C / 50 to 104° F

Control Modes

Position, Load Rate, and Strain Rate control

Width Between Columns

452 mm /17.8 in
