BOSTON HD Flue gas analyzer
BOSTON HD Flue gas analyzer

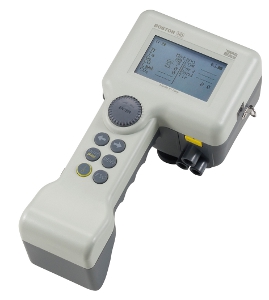

BOSTON HD, the latest version of the prestigious range of portable combustion gas analyzers, has interesting new performances that put it at the top of the market. Usable on any heating plants of every dimension, it is equipped of replaceable sensor cartridges, a large and lighting display and a rich option menu that includes a choice of 14 different combustibles. It can be also digital manometer and test on gas pipeline using KP400 kit. It has a complete management software that use 500 memories of the instrument, a data logger with graphic representation of combustion values and with the possibility to print Annex F and G also customizable.
In accordance with standards:
CEI EN 50379-1
CEI EN 50379-2
UNI 10389-1
UNI10845,
UNI 7129
UNI 11137-1
-
Standard Specification:
STANDARD FITTINGS OF THIS INSTRUMENT:
- Replaceable sensor cartridge by the user
- 150 mm flue gas probe
- Comburent air temperature
- Fume filter with condensation
- Feeder
- Infrared-ray printer
- Calibration report
Real Values Range Resolution Temperatura ambiente Pt 100 -20° ÷ 150° 0,1 C° Temperatura fumi 0 ÷ 1.000 °C 1° C O2 - Ossigeno 0÷21 % v/v 0,1 % CO - Monossido di carbonio 0÷2.000 ppm 1 ppm NO - Monossido di azoto 0÷1.000 ppm 1 ppm NO2 – biossido di azoto 0÷200 ppm 1 ppm SO2 biossido di zolfo 0÷2000 ppm 1 ppm CO - ambiente 0÷500 ppm 1 ppm CO – comb. solidi 1÷20.000 ppm 1 ppm CO - % 1÷99.999 ppm 10 ppm Tiraggio / pressione differenziale UNI 10845 Ponte DMS -50 Pa÷11.000 Pa / -100 Pa÷100 Pa 1 Pa / 0.1 Pa Opacità fumi 0÷9 1
